AP Doors. Aluminum Systems

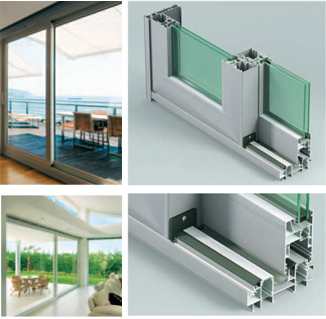

SLIDING SYSTEMS

Features

  • Frame Depth: 150 mm [5 7/8”]
  • Max Glass Size: 42 mm [1 5/8”]
  • Max Sash Weight: 300 kg [660 lbs]
  • Weather Stripping: EPDM or Brush Gaskets
  • Thermal Barrier: Polyamide
  • Lift-and-Slide Mechanism
  • Remote Controlled Door System
  • Multi-point Lock System
  • Durable Components

Benefits

  • Large Unobstructed Openings
  • Acoustic Insulation
  • Thermal Insulation
  • Quite and Smooth Closing System
  • Easy Maintenance

Applications

  • Doors
  • Fixed Windows
  • Windows

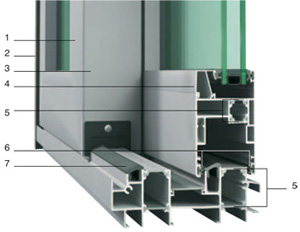

Technology

1- Sash
2- Frame
3- Painted or Anodized Finish
4- Glass Stop
5- Polyamidic Thermal Barrier
6- Weather Seal Gasket
7- Maintenance Free Sliding Guides




Performance data


Configuration


Glazing Options

The system provides design-flexibility to meet your performance needs. System will accomodate glass from 8 mm [3/8”] up to 42 mm [1 5/8”] in thickness. Different configurations can be evaluated with our Engineering Team.

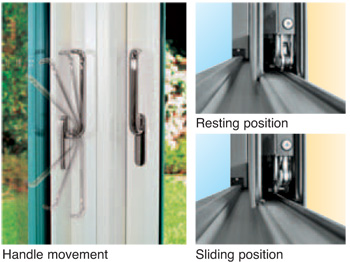

Lift & Slide Solution

  •  It’s ideal for moving large, heavy sashes with ease.
  •  Controlled and silent movement of the sash.
  •  Bear loads up to 300 kg [660 lbs].

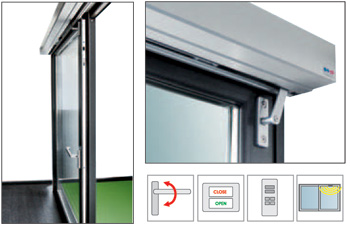

Automated Door System (Optional)

  • Available Closing Sytems:
    - Push and Go
    - Push Button
    - Remote Contro
    - Motion Detector
  • Max Sash Width: 3300 mm [129 7/8”]
  • Min Sash Height: 800 mm [31 1/2”]
  • Max Sash Height: 3230 mm [127 1/8”]
  • Max Sash Weight: 300 kg [660 lbs]
  • Built-in Safe Mechanism






Quality

We stand for quality and optimal performance.
Only original METRAprofiles and accessoriescan certify the highest performance.
Our quality is certified by ISO 9001.
Manufacturing and installation of final products are performed through a network of independent specialists
